Spread Anchor System
Spread Anchor System

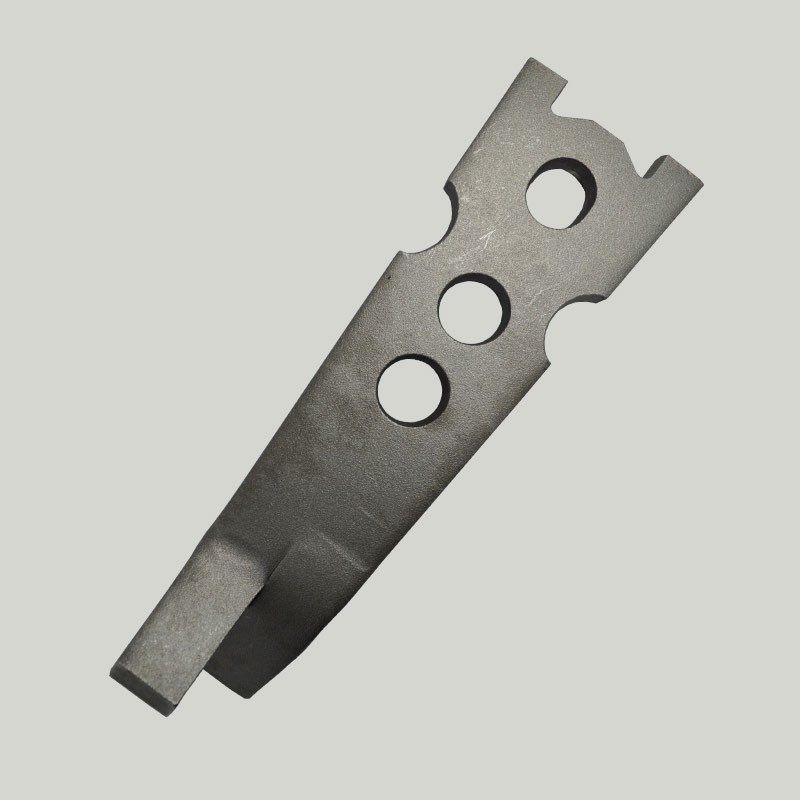

Stamping Steel Precast Erection Foot Anchor
Stamping Steel Precast Erection Foot Anchor

※ Certificate:CE,ISO9001-2015;

※ Load Capacity:1.25T-22.0T;

※ Minimum Breaking Strength:3 Times of W.L.L;

※ MOQ:1 Tons for each size;

※ OEM & ODM Accepted.

  • Description
  • Advantage
  • Application
  • Accessories

Stamping Steel Precast Erection Foot Anchor Free Samples

SMPRE™ Spread anchor system manufactured by Simen precast Co.,Ltd are lifting anchors consisting of flat steel inserts, ribbed steel anchor bars and rapid release lifting keys. Erection anchors enable lifting of columns, beams, walls and other pre-cast concrete elements. Erection anchors can be used in all lifting directions and for lifting angles up to 90 degrees.

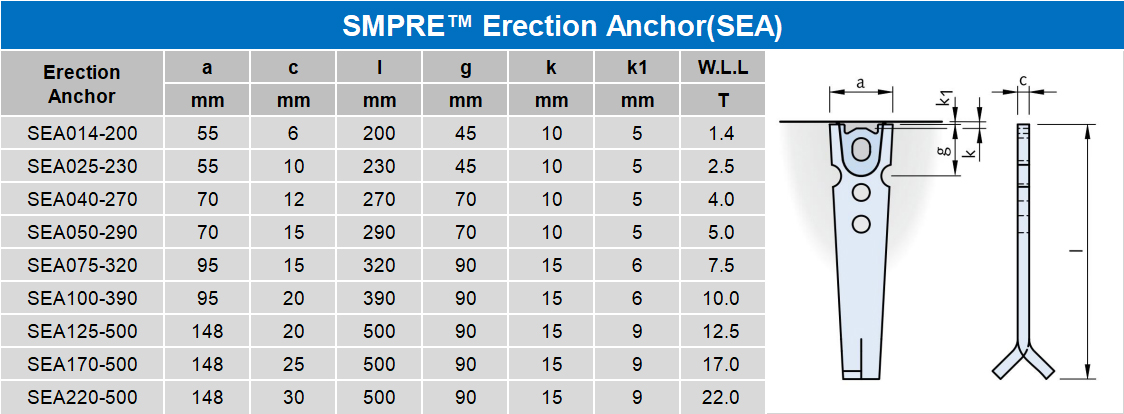

SMPRE™ Erection anchor

※ Material:Q345B,Q345D(1.0577),Stainless steel 304&316;

※ Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※ Delivery Time:Usually 15-30 days for one container;

※ Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirement;

※ Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.

☞ Manual ring couplings and ring couplings with manual or pneumatic remote release;
☞ Easy, safe and quick connection and disconnection of the ring clutches;
☞ No preferential direction, ring clutches remain mobile all round under load;
☞ Positive engagement of locking bolt into the anchor.

◆ Colums,

◆ Beam,

◆ Trusses,

◆ Wall unit,

◆ π-slabs.

SMPRE™ lifting ring clutch  SMPRE™ wire rope lifting ring clutch  SMPRE™ rubber recess for spread anchor
