SMPRE® Split Foot Erection Anchor
SMPRE® Split Foot Erection Anchor

※ Certificate:CE,ISO9001-2015;

※ PICC Products Liability Insurance;

※ Minimum Breaking Strength:4 Times of W.L.L;

※ MOQ:1 Tons for each size;

※ OEM & ODM Accepted.

  • Description
  • Advantage
  • Application
  • Accessories

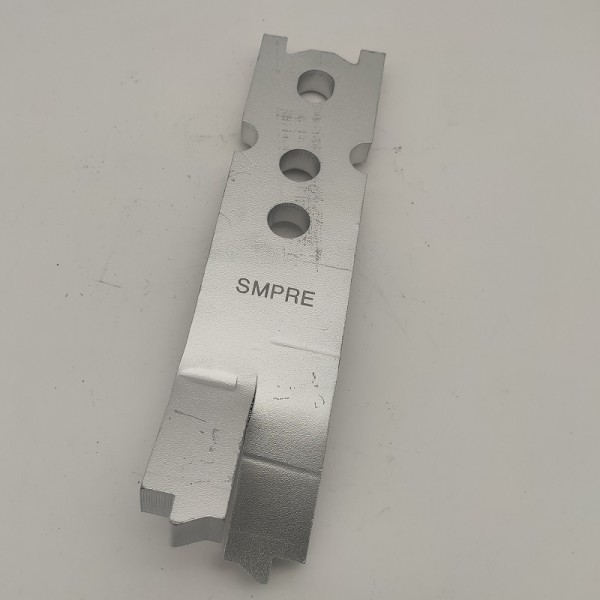

 SMPRE Split Foot Erection Anchor

Split Foot Erection Anchor

The SMPRE® Split Foot Erection Anchor is designed for horizontal to vertical edge lifting and handling of thin-walled precast elements. The two "ears" on the head of the anchor prevent the clutch from coming in contact and spalling the concrete. The "ears" transfer the shear loads into the anchor and concrete. The shear bar is required with this anchor. A tension bar is typically required to reach the higher tension capacities. Available in 2T, 4T and 8-Ton capacities.

※ Material:Q345B,Q345D,Stainless steel 304&316;

※ Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※ Delivery Time:Usually 15-30 days for one container;

※ Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirement;

☞ Designed for thin panels and low strength concrete concrete lifts.
☞ Anchor has built in anti-shear feature. This eliminates need for separate shear reinforcement.
☞ Concealed anchorage so that the face of the panel has no patching or tilt covers.
☞ Forged anchor more rust-proof and more resistant to corrosion.
