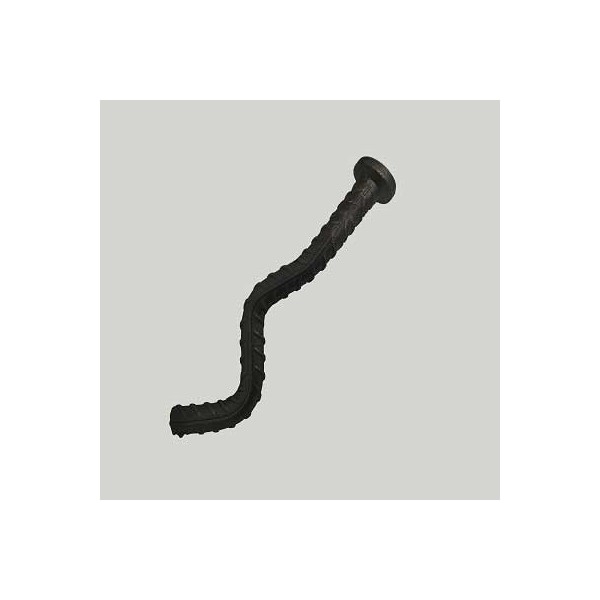

New Style Rod Short Wavy Tail Spherical Anchor


New Style Rod Short Wavy Tail Spherical Anchor



※ Certificate:CE,ISO9001-2015;

※ Load Capacity:1.3T-32.0T;

※ Minimum Breaking Strength:3 Times of W.L.L;

※ MOQ:1 Tons for Each Size;

※ OEM and ODM Accepted.


  • Description
  • Advantage
  • Application
  • Accessories

2019 New Style Rod Short Wavy Tail Spherical Anchor


The SMPRE™ short wavy tail spherical head anchor is designed primarily as a lifting anchor for heavily reinforced, linear components such as columns or beams. The anchors are top-mounted. Due to the reinforcement which already exists in heavily reinforced components, all forces can be safely accommodated despite the short anchor length.

SMPRE™ short wavy tail spherical head lifting anchor

※  Material:Rebar BS400, BS500, ASTM grade 65, Grade 75;

※  Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※  Delivery Time:Usually 15-30 days for one container;

※  Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirements;

※  Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.



☞ No parts projecting above the element's surface,
 Ideal for heavily reinforced components,
☞ Quick coupling of the lifting device into the anchor,
☞ Robust, long-lasting lifting device.

◆ Posts,

◆ Beams,

◆ Girders.

SMPRE™ Lifting device  SMPRE™ rubber recess  SMPRE™ magnet rubber recess  SMPRE™ rubber grommet
