Precast Concrete Two Hole Anchor for Construction


Precast Concrete Two Hole Anchor for Construction


※ Certificate:CE,ISO9001-2015;

※ Load Capacity:1.25T-22.0T;

※ Minimum Breaking Strength:3 Times of W.L.L;

※ MOQ:1 Tons for each size;

※ OEM & ODM Accepted.


  • Description
  • Advantage
  • Application
  • Accessories

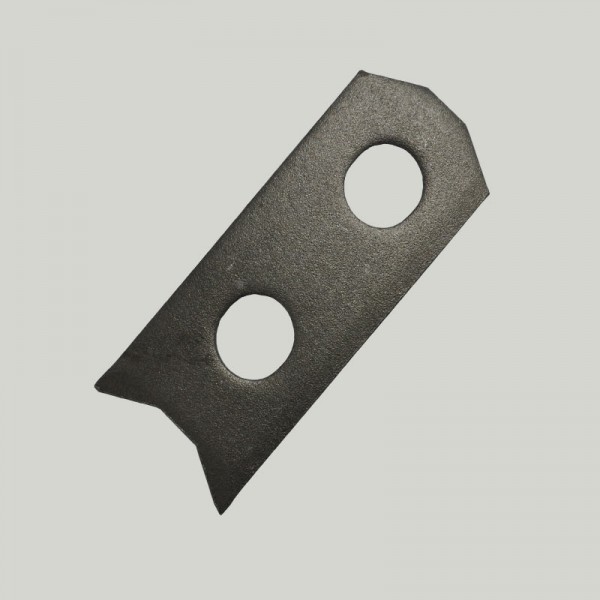

Precast Concrete Two Hole Anchor for Construction


SMPRE™ Spread anchor system manufactured by Simen precast Co.,Ltd are lifting anchors consisting of flat steel inserts, ribbed steel anchor bars and rapid release lifting keys. The head of the two hole anchor is identical to the head of the spread anchor. The anchorage in concrete is achieved by means of a reinforcement tail. Longer anchors with additional holes can be produced on request.

SMPRE™ two hole anchor


※ Material:Q345B,Q345D(1.0577),Stainless steel 304&316;

※ Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※ Delivery Time:Usually 15-30 days for one container;

※ Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirement;

※ Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.



☞ Manual ring couplings and ring couplings with manual or pneumatic remote release;
☞ Easy, safe and quick connection and disconnection of the ring clutches;
☞ No preferential direction, ring clutches remain mobile all round under load;
☞ Positive engagement of locking bolt into the anchor.

◆ Thinwalled concrete elements,

◆ Low strength concrete(such as light weight concrete),

◆ Prestressed concrete trusses.

SMPRE™ Ring Lifting Clutch  SMPRE™ Wire Rope Lifting Ring Clutch  SMPRE™ Rubber Recess For spread anchor
