Spherical Anchor System
Spherical Anchor System
Precast Concrete Double Headed Lifting Anchor
Precast Concrete Double Headed Lifting Anchor

※ Certificate:CE,ISO9001-2015;

※ Load Capacity:1.3T-5.0T;

※ Minimum Breaking Strength:3 Times of W.L.L;

※ MOQ:1 Tons for each size.

  • Description
  • Advantage
  • Application
  • Accessories

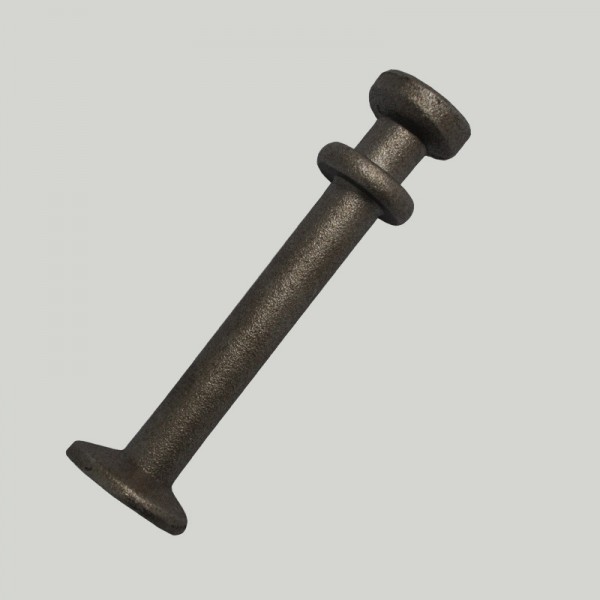

Precast Concrete Double Headed Lifting Anchor (SDA)

SMPRE™ Double head lifting anchors are designed with a collar below the anchor head, so that when pushed into the former, the collar makes a seal.Assembly is quicker and when demoulding the former stays on the mould.The anchors are mainly used in light,thin-walled tubes or shafts. It is particularly suitable for formworks with an automatic anchor feeding.

SMPRE™ double head lifting anchor

※ Material:CM490,20Mn2(1.0473),Q345D(1.0577),Stainless steel 304&316;

※ Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※ Delivery Time:Usually 15-30 days for one container;

※ Packaging:20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirement;

※ Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.

☞ No parts projecting above the element's surface,

☞ Easy installation due to the rotation symmetrie, optimised for automated anchor feeding,

☞ Quick coupling of the lifting device into the anchor,

☞ Robust, long-lasting lifting device.


◆ Tube,

◆ Shaft and manhole,

◆ Staircases,

◆ Balconies;

SMPRE™ lifting clutch  SMPRE™ Magntic rubber recess  SMPRE™ rubber recess former  SMPRE™ rubber grommet
