Yoke Plate

Forged or high-strength steel plate construction

Hot-dip galvanized surface, excellent corrosion resistance

Multi-hole or double-row connection design

High mechanical strength, uniform stress distribution

Standard dimensions, stable and reliable

Type

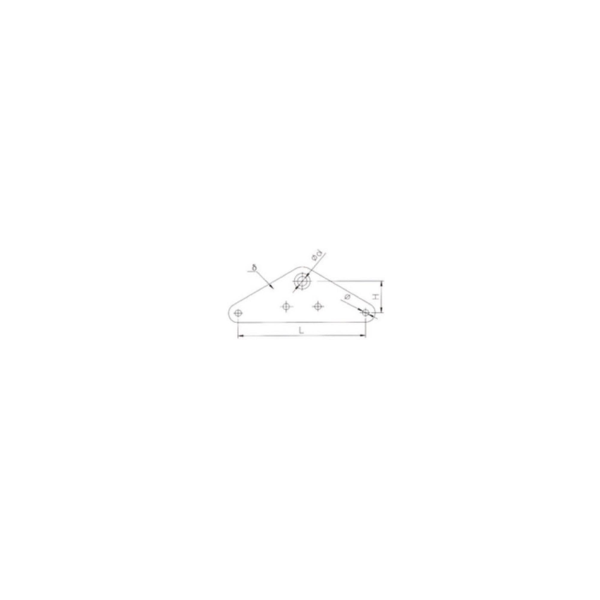

Main dimensions(m)

δ H φ L

Devastating Load(kN) Weight (kg)

L-1040 16 70 18 400

100 4.4

1.-1240 16 70 18 400

120 4.7

L-1640 18 100 20 400

160 5.9

1.-2140 16 100 20 400

210 7.0

L-2540 16 110 24 400

250 9.0

L-3040 18 110 26 400

300 10.0

Suitable for multi-conductor or bundle conductor lines

Even load distribution, high safety performance

Easy installation and assembly

Good fatigue resistance

Long service life, low maintenance

Overhead transmission and distribution lines

Used for suspension and tension strings of bundle conductors

Connection between insulator strings and towers

Matching with clamps, shackles and link fittings

Bolts, nuts, lock pins, washers
