Wall Strap Guy Eye


Wall Strap Guy Eye

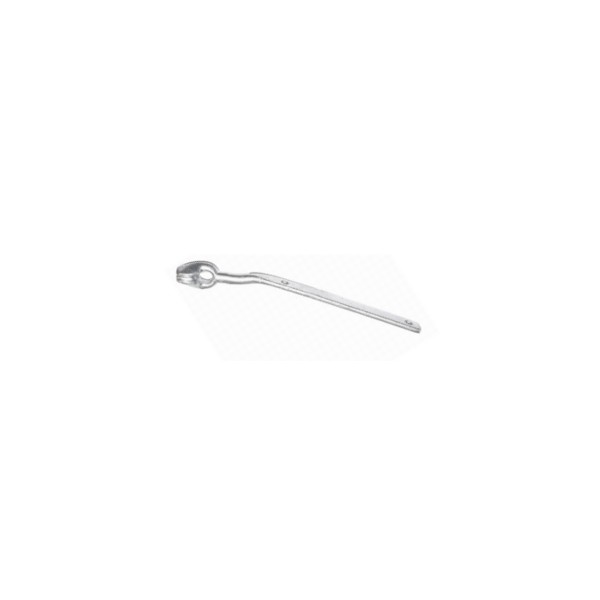

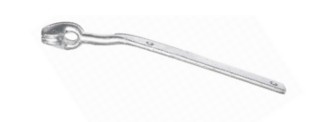

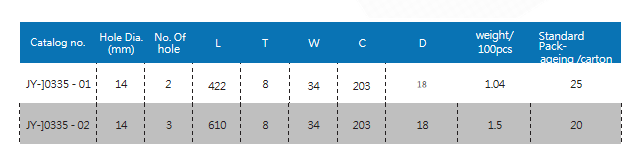

Wall Strap Guy Eye (JY-J0335-01/JY-J0335-02) is a steel fitting designed for connecting guy wires to wall structures in power and telecommunication systems, eliminating the need for utility pole mounting. JY-J0335-01 features 2 holes (14mm diameter), 422mm length, weighs 104 units per 100 pieces (25 per carton); JY-J0335-02 has 3 holes (14mm diameter), 610mm length, weighs 1.5 units per 100 pieces (20 per carton). Both models have a forged eye design for secure guy wire attachment and a galvanized finish for corrosion resistance.
  • Description
  • Advantage
  • Application
  • Accessories

This galvanized Wall Strap Guy Eye (422mm/610mm) securely anchors guy wires to building walls, ideal for pole-free utility setups.


  • Wall-mounted guy wire connection: Enables guy wire attachment to walls, suitable for areas without utility poles.
  • Hole versatility: 2/3 hole designs fit different wall mounting configurations and load requirements.
  • Corrosion resistance: Galvanized steel finish withstands outdoor/industrial corrosion for long service life.
  • Precision dimensions: 422mm/610mm lengths and 14mm hole diameter match standard wall mounting hardware.
  • Standardized packaging: 25/20 pieces per carton streamlines storage and on-site installation.
  • Building-mounted telecom equipment: Connects guy wires to walls for stabilizing antennae and small telecom boxes.
  • Industrial power systems: Secures guy wires for wall-mounted electrical equipment and cable trays.
  • Residential/commercial lighting: Anchors guy wires for tall exterior light fixtures mounted on building walls.
  • Construction sites: Serves as a temporary guy wire anchor for scaffolding and temporary masts attached to walls.
  • 14mm diameter bolts/nuts: For mounting the guy eye to wall structures (concrete/metal/wood).
  • Wall anchors/expansion bolts: For securing the guy eye to masonry or concrete walls.
  • Guy wire clamps/thimbles: For attaching guy wires to the forged eye of the fitting.
  • Anti-corrosion grease: Lubricates threaded sections and prevents rust in wall-mounted applications.
