Thimble Chevis Specification

Compact integrated design

Smooth surface, protects cable

High strength, durable

Hot-dip galvanized, corrosion-resistant

Easy installation

Standard specification, good compatibility

Description
Advantage
Application
Accessories

Type

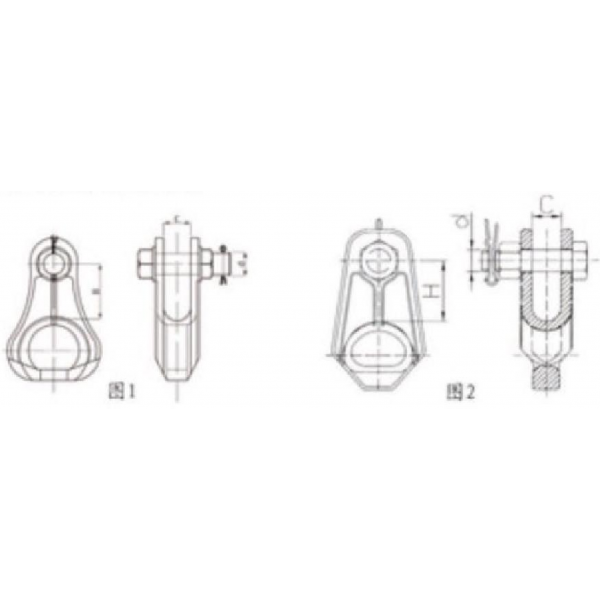

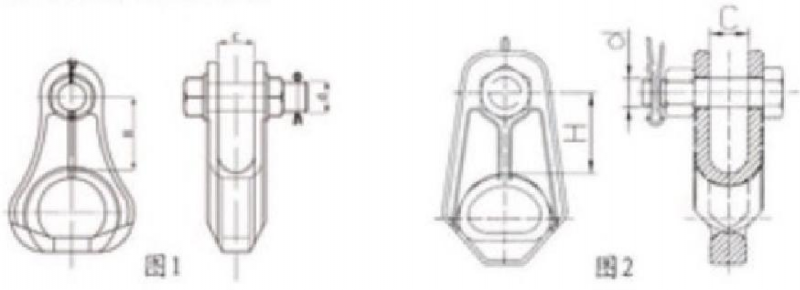

Drawing No.

Main d

imension

s(mm)

Devastating Load(KN)

Weight(kg)

TC 50

M16

0.50

TC 70

M16

0.90

TC 120

M16

120

1.30

TC 160

M18

160

1.70

High strength and stable structure

Corrosion resistant, long service life

Easy to install and connect

Good compatibility with fittings

Protects cable from damage

Used with helical dead-end for OPGW and ADSS cables

Applied on transmission towers, tension towers and corner towers

Used in overhead power transmission and communication lines

Thimble Clevis

Helical Dead-end

Suspension Clamp

Reinforcing Rods

Connecting Fittings

U-Shackle

Protection Pads

Earth Terminal
