Guy Clamp

Guy clamp

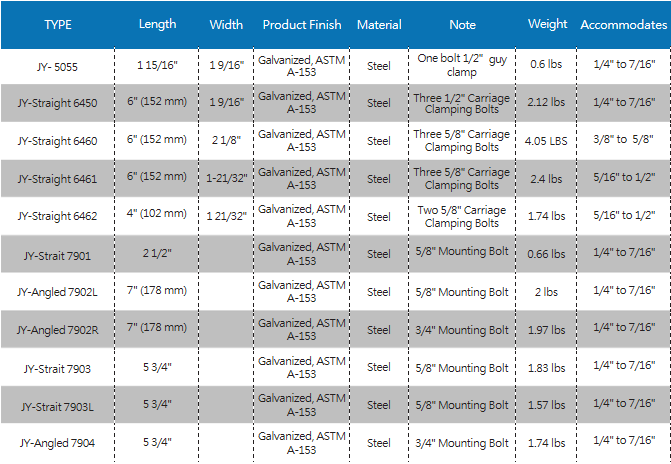

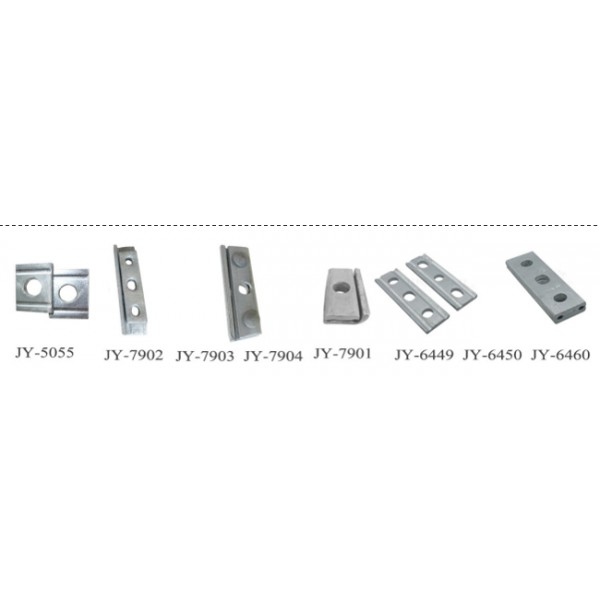

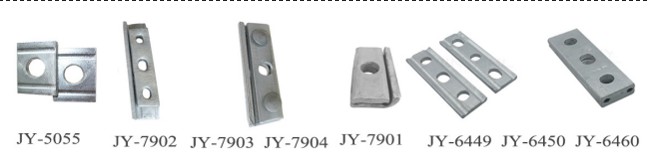

Guy Clamp Series (JY-5055/JY-7902/JY-7903/JY-7904/JY-7901/JY-6449/JY-6450/JY-6460) are precision-engineered steel fittings for securing guy wires in power and telecommunication infrastructure. Crafted from steel with ASTM A-153 galvanized finish for corrosion resistance, they come in straight/angled designs with varying dimensions (lengths from 2 1/2" to 7", widths from 19/16" to 2 1/8") and accommodate guy wire diameters from 1/4" to 7/16" (or 3/8" to 5/8" for specific models). Each clamp is designed for specific mounting bolts (1/2" to 3/4") and clamping bolts (1/2" to 5/8"), with weights ranging from 0.6 lbs to 4.05 lbs, tailored for light to medium-load guy wire fastening applications.

Description
Advantage
Application
Accessories

SMPRE Guy clamp is mainly used on the communication line. It used together with the stay wire and an- chor rod to make the pole stable. When the stay wire goes across the anchor rod, the 3 bolt clamp bites the end of the stay wire to prevent the stay wire from creeping down.

Diverse model range: Straight/angled designs and multiple sizes (JY-5055 to JY-6460) fit different guy wire diameters (1/4"–7/16", 3/8"–5/8") and installation scenarios.

Corrosion resistance: ASTM A-153 galvanized finish protects against rust, salt spray, and industrial corrosion for long-term outdoor use.

Precision engineering: Matched mounting/clamping bolt sizes ensure a tight, vibration-resistant grip on guy wires, preventing slippage under tension.

Lightweight yet durable: Steel construction delivers tensile strength while keeping weights low (0.6–4.05 lbs) to minimize pole load.

Power distribution lines: Fastens guy wires to utility poles, cross arms, and anchor systems in low/medium-voltage power networks.

Telecommunication infrastructure: Secures guy wire systems for telecom towers, antenna poles, and cable support structures.

Residential/light commercial power: Stabilizes utility poles with light-duty guy wire setups in neighborhoods and small commercial areas.

Street lighting systems: Attaches guy wires to lighting poles to prevent tipping in high-wind urban environments.

Mounting bolts/nuts (1/2" to 3/4"): For attaching clamps to utility poles/cross arms (e.g., 5/8" mounting bolts for JY-7903).
Clamping bolts/nuts (1/2" to 5/8"): For tightening the clamp around guy wires (e.g., three 5/8" carriage bolts for JY-6460).
Flat/lock washers: Distribute load and prevent hardware loosening under vibration.
Guy wire thimbles: Protect guy wires from abrasion when paired with the clamp.
Anti-corrosion grease: Lubricates threaded sections for easy installation and rust prevention.
