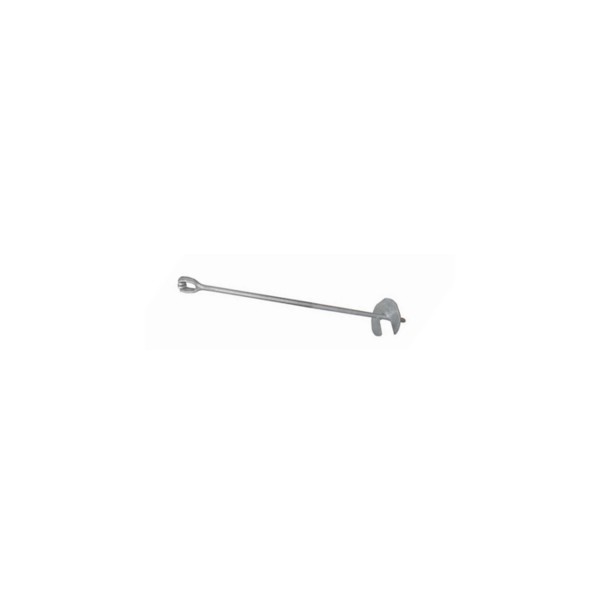

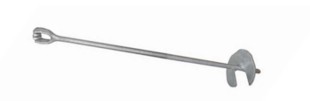

Forged Eye Shaft

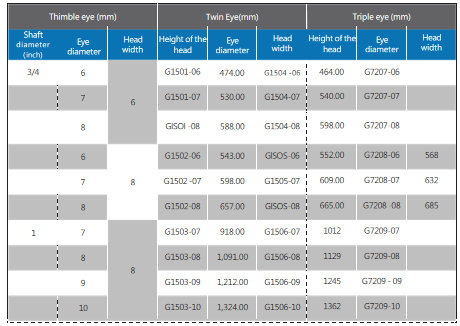

Forged Eye Shaft (also called guy thimble shaft) is a precision-forged steel component engineered for power and telecommunication infrastructure, serving as an accessory for stay rods to connect guy wires. Available in thimble eye, twin eye, and triple eye configurations, it features shaft diameters of 3/4", 7/8", and 1", with eye diameters from 6mm to 10mm and matched head widths (6mm/8mm). Each model (e.g., G1501-06, G1504-07, G7207-08) has a specified height of the head (474.00mm to 1362mm), crafted from high-strength forged steel with a corrosion-resistant finish for heavy-load guy wire connection applications.

Description
Advantage
Application
Accessories

Forged Eye Shaft features corrosion-resistant steel construction and multiple eye configurations, ideal for heavy-load guy wire connections on utility poles.

Forged durability: High-strength forged steel construction withstands extreme tensile loads and mechanical stress in guy wire systems.

Multiple eye configurations: Thimble/twin/triple eye designs accommodate single, dual, or triple guy wire connections for versatile load requirements.

Precision sizing: Shaft diameters (3/4"/7/8"/1") and eye diameters (6–10mm) are calibrated for secure fit with stay rods and guy wires.

Corrosion resistance: Galvanized or plated finish protects against rust and environmental degradation in outdoor/underground use.

Easy assembly: Integrates seamlessly with stay rods and guy wires, requiring minimal tools for on-site installation.

Power distribution lines: Connects guy wires to stay rods on utility poles, stabilizing poles against wind and line tension in low/medium-voltage networks.

Telecommunication infrastructure: Links guy wire systems to stay rods for telecom towers, antenna poles, and cable support structures.

Transmission line projects: Used in medium/high-voltage power systems to connect heavy-duty guy wires to stay rods in high-wind regions.

Industrial utility setups: Secures guy wires for masts and equipment supports in mining, construction, and railway electrification.

Street lighting systems: Attaches guy wires to stay rods for tall lighting pole stabilization in urban and rural infrastructure.

Stay rods (3/4"/7/8"/1"): Paired with the forged eye shaft to extend guy wire connections to ground anchors.

Guy wire clamps/thimbles: For securing guy wires to the shaft’s eyelets and preventing wire abrasion.

Hex nuts & lock washers: Fasten the shaft to stay rods and prevent loosening under vibration/tension.

Anti-corrosion grease: Lubricates threaded sections for easy installation and rust prevention.

Anchor rods/plates: Connect the stay rod-shaft assembly to ground anchors for pole stabilization.
