Fixing Sockets With Bend End for Precast Concrete


Fixing Sockets With Bend End for Precast Concrete


※ Certificate:CE,ISO9001-2015.

※ Size:M10-M30.

※ Minimum Breaking Strength:4 Times of W.L.L.

※ OEM and ODM is Accepted.

※ Certificate:CE,ISO9001-2015.

※ Size:M10-M30.

※ Minimum Breaking Strength:4 Times of W.L.L.
※ OEM and ODM is Accepted.
  • Description
  • Advantage
  • Application
  • Accessories

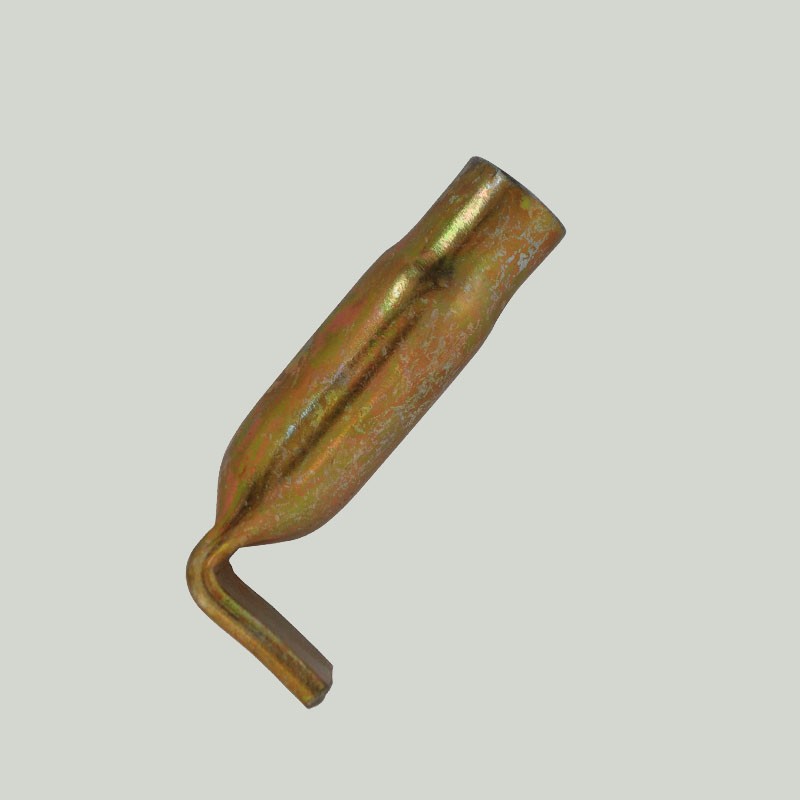

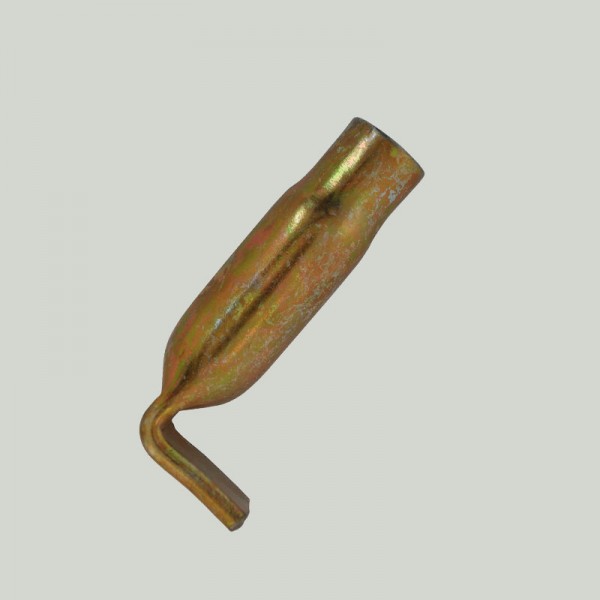

Fixing Sockets With Bend End for Precast Concrete


Combined with SMPRE™ lifting sockets for fast and cost-effective structural connections. SMPRE™ Socket Dowel with cross end is suitable for a slab edge and a slab face installation in precast concrete elements. It is anchored into the concrete by the form fit of the cross end.

Fixing sockets with bend end

※ Material:Carbon Steel,Stainless steel,Spring steel, Alloy steel;

※ Surface:Plain,Electrical Galvanized(E.Z.),Hot Dip Galvanized(H.D.G.);

※ Delivery Time:Usually 15-30 days for one container;

※ Packaging: 20kgs per Woven bag,and 1 Ton per Plywood Box or according to your requirement;

※ Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.




☞ Time saving on site due to pre-planned anchoring points.

☞ Load up to 2.75T possible.

☞ Numerous installation situations can be realised due to  different anchorage variants in the  concrete.

☞ Also available in stainless steel.


※ Certificate:CE,ISO9001-2015.

※ Size:M10-M30.

※ Minimum Breaking Strength:4 Times of W.L.L.
※ OEM and ODM is Accepted.
◆Wall.
SMPRE™ lifting loops  SMPRE™ Magnetic Plug  SMPRE™ plastic plug
