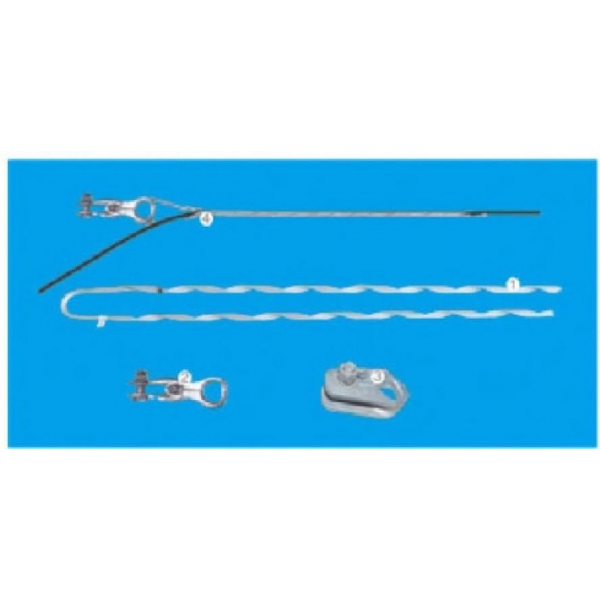

Dead-end for Short Span ADSS cable

ADSS optical cable strain clamp with small tension adopts aluminum clad steel wire or
galvanized steel wire,which is mainly used in optical eable connection of strain tower, corner tower,middle connecting tower and terminal tower with distance not over 100m.

Description
Advantage
Application
Accessories

产品规格Type

适用缆径

Available Dia.of

Cable(mm)

预绞丝长度

Length of Dead-end

Coaponent(mm)

参考重量

Ref.Moight

(kg)

配套连接件

Fitting

t型环

心型环

ANL015/0950

9.0-9.5

800

0.4

U-5

TC-050

ANL015/1050

9.6-10.5

850

0.5

U-5

TC-050

ANL015/1160

10.6-11.6

910

0.4

U-5

TC-050

ANL015/1280

11.7-12.8

960

0.7

U-5

TC-050

ANL.015/1410

12.9-14.1

1080

0.83

U-5

TC-050

ANL015/1560

14.2-15.6

1160

1.23

U-5

TC-050

Compact design, ideal for narrow installation spaces

Easy & fast installation, reduces working time

Stable clamping force, no damage to cable

High strength, corrosion-resistant & long service life

Light weight, suitable for short‑span ADSS cable

Good compatibility with various poles and fittings

Urban area/community fiber access (≤100m short span)

FTTH residential building overhead deployment

Power distribution network communication

Short-distance overhead optical cable in factories, parks and roads

Narrow/pole-dense urban communication projects

U-bolt

Shackle

Thimble

Hex bolt & nut

Flat washer

Spring washer

Protective sleeve

Cable clamp
