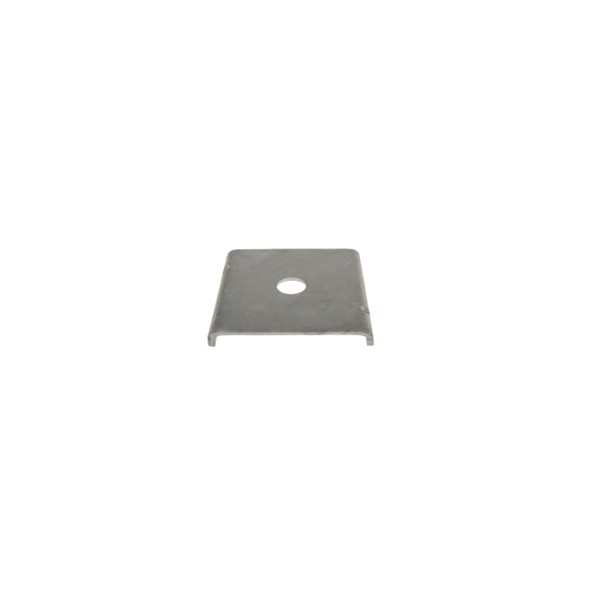

Cross-Plate Anchor

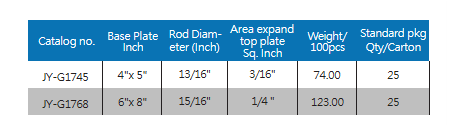

Cross-Plate Anchor (JY-G1745/JY-G1768) is a reinforced steel plate anchor engineered for utility pole and overhead line infrastructure, designed to prevent damage to wooden crossarms (4"×5" or 6"×8") from tightened nuts. Featuring a pressed rib for structural rigidity, it’s available in two models: JY-G1745 (4"×5" base plate, 13/16" rod diameter, 3/16" top plate thickness, 74.00 weight/10pcs) and JY-G1768 (6"×8" base plate, 15/16" rod diameter, 1/4" top plate thickness, 123.00 weight/10pcs), with 25 pieces per carton as standard packaging. Crafted from galvanized steel for corrosion resistance, it distributes load evenly across crossarms to enhance utility pole stability.

Description
Advantage
Application
Accessories

This galvanized Cross-Plate Anchor comes in two sizes, delivering load distribution and crossarm protection for utility pole crossarm hardware.

Crossarm protection: Reinforced plate design avoids damage to wooden 4"×5"/6"×8" crossarms from nut tightening pressure.

Structural rigidity: Pressed rib adds strength to the steel plate, enabling it to withstand heavy tensile loads from guy wires/anchor rods.

Model versatility: Two sizes (4"×5"/6"×8") fit common crossarm dimensions in power/telecom projects.

Corrosion resistance: Galvanized steel finish resists rust and environmental wear for long-term outdoor use.

Standardized packaging: 25 pieces per carton streamlines storage, shipping, and on-site inventory management.

Utility pole crossarm reinforcement: Mounted on 4"×5"/6"×8" wooden crossarms to distribute load from anchor rods/guy wires in power distribution lines.

Telecommunication infrastructure: Reinforces crossarms on telecom utility poles to support guy wire systems and heavy hardware.

Transmission line projects: Used in medium-voltage power systems to protect crossarms from hardware-induced damage.

Rural power distribution: Secures crossarms on wooden utility poles in rural power networks with limited structural reinforcement.

Street lighting systems: Reinforces crossarms that support street light fixtures and associated electrical components.

13/16"/15/16" diameter anchor rods: Paired with the cross-plate anchor to connect crossarms to guy wire/ground anchor systems.

Hex nuts & lock washers: Fasten the anchor rod to the cross-plate anchor and prevent loosening under vibration.

Flat washers: Distribute load across the cross-plate’s surface to avoid plate deformation.

Anti-corrosion grease: Lubricates threaded sections for easy installation and rust prevention.

Guy wire clamps/thimbles: For linking guy wires to the upper end of the anchor rod.
