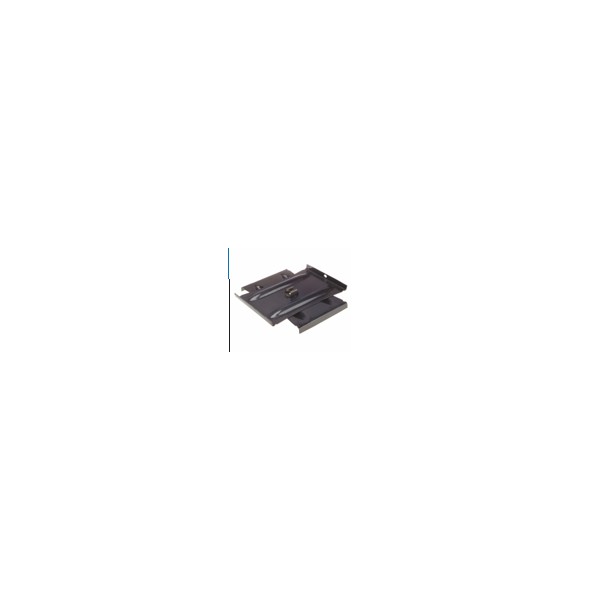

Cross-Plate Anchor

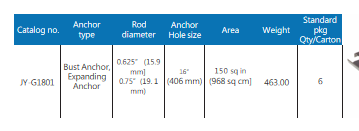

Cross-Plate Anchor (JY-G1801) is a heavy-duty steel anchoring component designed for utility pole and overhead line infrastructure, compatible with 5/8" (15.9mm) or 3/4" (19mm) diameter rods and featuring a 16" (406mm) anchor hole size. Classified as a Bush Anchor / Earth Anchor / Strut Anchor, it has a surface area of 150 sq in (988 sq cm) and weighs 463.00 units per piece, with 6 pieces per carton as standard packaging. Fabricated from high-strength steel (likely hot-dip galvanized for corrosion resistance), it delivers superior tensile load-bearing capacity for securing anchor rods in power and telecommunication pole anchoring systems.

Description
Advantage
Application
Accessories

Cross-Plate Anchor features a 150 sq in surface area and multi-type anchor design, ideal for high-load utility pole anchoring in overhead line infrastructure.

High load capacity: 150 sq in surface area distributes tensile forces evenly into the soil, ensuring stable utility pole anchoring.

Rod compatibility: Works with 5/8" and 3/4" diameter anchor rods, adapting to different load requirements in power/telecom projects.

Heavy-duty construction: Robust steel build withstands extreme soil tension and wind-induced pole stress.

Standardized packaging: 6 pieces per carton streamlines storage, shipping, and on-site inventory management.

Versatile anchor type: Functions as bush, earth, or strut anchor for flexible use in various soil and installation conditions.

Utility pole anchoring: Secures wooden/metal/concrete utility poles in high-voltage power distribution and telecommunication lines.

Guy wire systems: Connects anchor rods to guy wire assemblies, providing lateral support for poles in high-wind regions.

Transmission line infrastructure: Used in medium/high-voltage power transmission projects to anchor heavy-duty pole hardware.

Telecom tower support: Provides ground anchoring for small to medium telecom towers and antenna structures.

5/8" / 3/4" diameter anchor rods: For connecting the cross-plate anchor to utility pole guy wire systems.

Hex nuts & lock washers: Fasten the anchor rod to the cross-plate anchor and prevent loosening under tension.

Guy wire thimbles/clamps: For linking guy wires to the anchor rod’s upper end.

Anti-corrosion grease: Lubricates threaded sections for easy installation and prevents rust seizing in soil.

Concrete grout (optional): Enhances anchor stability in loose or sandy soil conditions.
