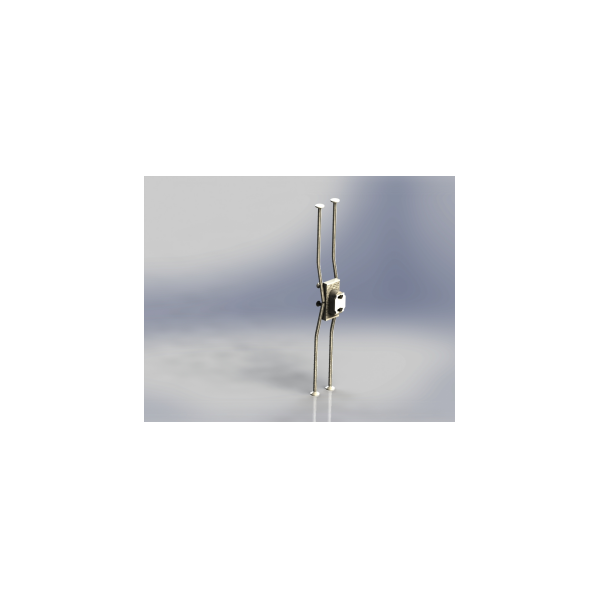

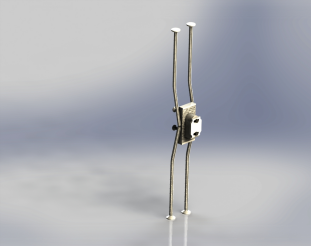

PCs Corbel

A corbel plate is bolted to a machined steel column plate which is then incorporated into the column. Together with the main reinforcement, the column plate is cast into the column, and then the corbel plate becomes attached to the column once the formwork is removed. You can connect as many beams to the columns as the cross-section allows using this system.

The dimensions are designed so that their position in relation to the column plate can easily be adjusted. As soon as the corbel plate is bolted to the column plate, Corbel is ready for use without having to weld or wedge it.

Description
Advantage
Application
Accessories

Corbel is a modular corbel featuring a cast-in part that allows for straight mold walls and a bolted bracket offering superior adjustability and resistance. The Corbel system helps achieve maximum floor height while creating visually appealing beam-column connections in residential buildings.

With a SMPRE Corbel, you are able to drop your beams without worrying about conflicts, as the assembly automatically becomes flush when the beams drop making it the most innovative corbel available on the market today.

☞ vertical support for steel beams,

☞ hybrid beams

☞ reinforced concrete beams
