Cast-in System
Cast-in System
Bent/Angled Wire Rope Cast-in Lifting Loop


Bent/Angled Wire Rope Cast-in Lifting Loop

※ Certificate:CE,ISO9001-2015;

※ Load Capacity:0.8T-8.0T;

※ Minimum Breaking Strength:4 Times of W.L.L;

※ OEM & ODM is Accepted.

  • Description
  • Advantage
  • Application
  • Accessories

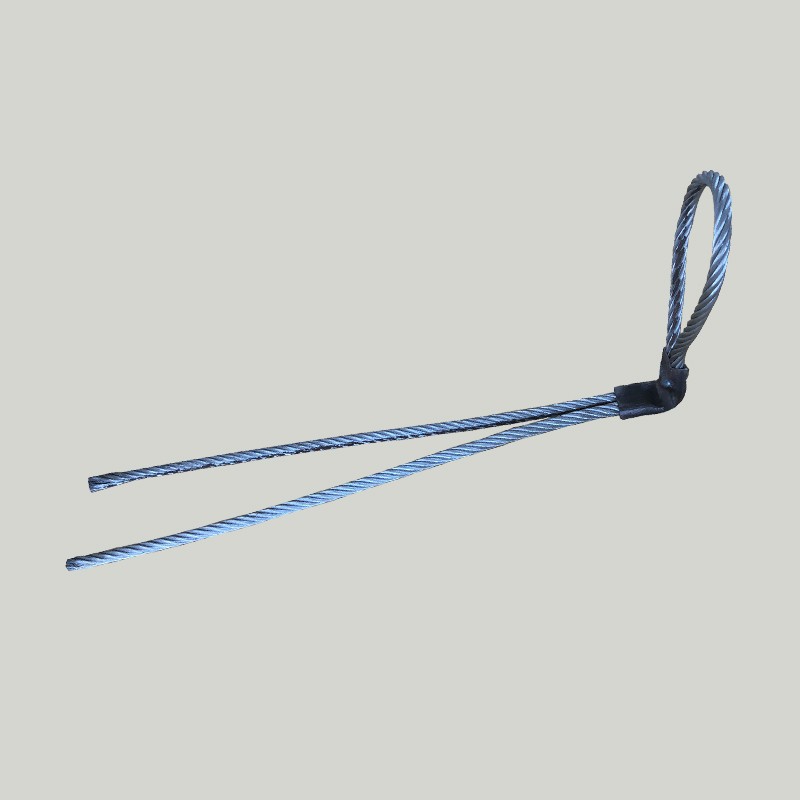

Bent/Angled Wire Rope Cast-in Lifting Loop


The SMPRE™ Bent Loop for slabs was developed as a lifting anchor for lifting precast concrete slabs. The shape of the bent loop and the design of the retaining bracket enable very simple installation and easy fixing to the reinforcement. Once the concrete reaches target strength, a suitable suspension hook can be hooked directly into the loop protruding from the component and the element lifted safely. All SMPRE™ Bent Loops have, depending on the permissible resistance, colour-coded load capacity identification tags made of plastic.

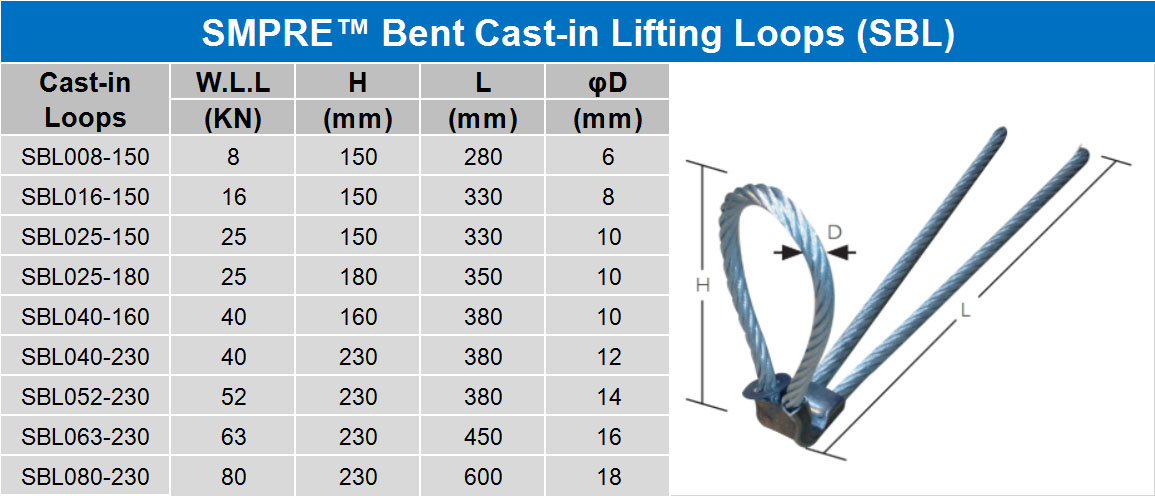

SMPRE™ bent loops

※ Material:7*19,1770 Mpa Steel Wire Rope,

※ Surface:Electrical Galvanized(E.Z.),

※ MOQ: 500 pieces,

※ Delivery Time:Usually 15-30 days for one container,

※ Packaging:Plywood Box or according to your requirement,

※ Standard: EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205.




☞ Economic and simple process for precast lifting
☞ Requires no lifting clutch
☞ High load capacities depending on the element geometry possible

☞ Color coded tag for easy identification

☞ Safe load application

☞ Simple to install


◆ L-shaped walls

◆ Slabs
