Anchor Rod

ANCHOR ROD

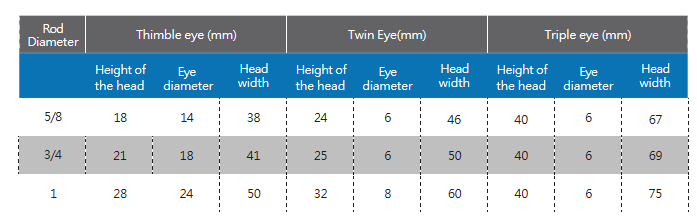

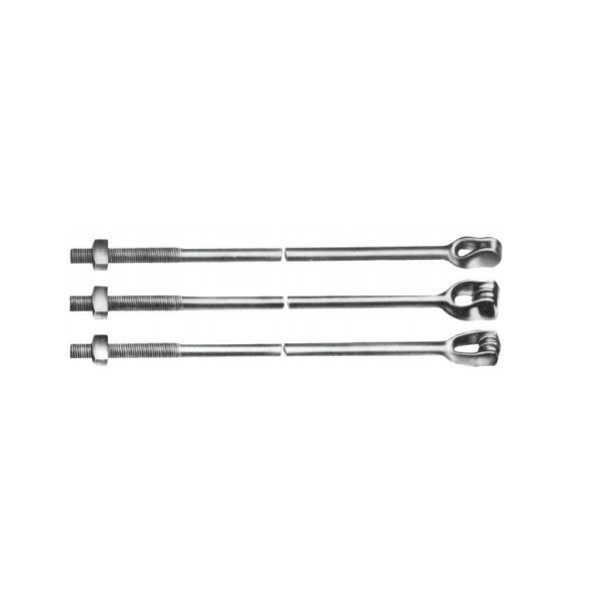

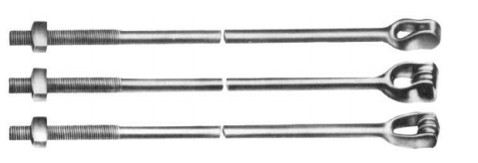

Anchor Rod (also called utility pole anchor rod) is a high-strength steel fastener engineered for anchoring utility poles, cross arms, and overhead line hardware in power and telecommunication infrastructure. It features a threaded rod body with thimble eye, twin eye, or triple eye configurations at one end, available in rod diameters of 5/8", 3/4", and 1". Key dimensions vary by eye type: thimble eye has head heights of 18/21/28mm (for 5/8"/3/4"/1" rods), twin eye head heights of 24/25/32mm, and triple eye head heights of 40/40/40mm, with corresponding eye diameters and head widths tailored for load-bearing performance. Constructed from galvanized steel for corrosion resistance, it delivers robust tensile strength for underground and above-ground anchoring applications.

Description
Advantage
Application
Accessories

This high-strength Anchor Rod features precision-engineered eye configurations and galvanized steel construction, ideal for heavy-load utility pole anchoring in overhead line projects.

Secure anchoring: Specialized eye designs create strong connections with guy wires, brackets, and anchor plates, preventing utility pole leaning or collapse.

Load versatility: Different rod diameters and eye types accommodate light to heavy load demands in power distribution and telecom networks.

Long service life: Galvanized coating resists corrosion in soil, moisture, and industrial environments, reducing maintenance and replacement costs.

Easy installation: Threaded rod body enables quick attachment to nuts, washers, and anchor hardware, cutting on-site labor time.

Structural stability: Precision dimensions ensure a tight fit with mating components, enhancing overall overhead line stability.

Utility pole anchoring: Secures wooden/metal/concrete utility poles in power distribution and telecommunication lines to resist wind and line tension.

Guy wire systems: Connects guy wires to anchor blocks or ground stakes for additional pole support in high-wind areas.

Transmission line infrastructure: Used in medium/high-voltage power transmission projects to anchor cross arms and heavy hardware.

Telecom tower support: Provides anchoring for small telecom towers and antenna mounting structures.

Street lighting poles: Anchors tall lighting poles to prevent tipping in urban and rural infrastructure projects.

Hex nuts & lock nuts: For fastening the anchor rod to anchor plates, pole brackets, or ground anchors.

Flat washers & lock washers: Distribute load and prevent nut loosening under vibration and tension.

Anchor plates/blocks: Underground or above-ground concrete/metal blocks that transfer the rod’s tensile load to the soil.

Guy wire thimbles: For connecting guy wires to the anchor rod’s eyelets without wire fraying.
