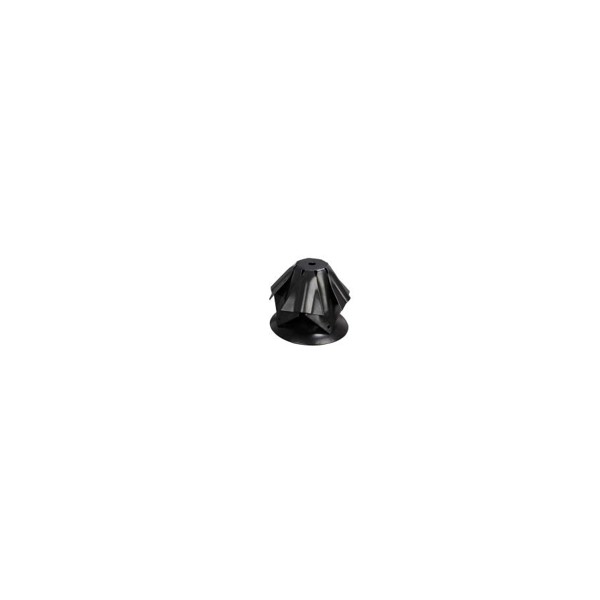

Anchor Expanding 8 Way

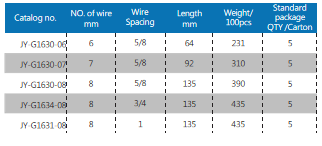

Anchor Expanding 8 Way (JY-G1630 series: JY-G1630-06/07/08/09/10/11) is an 8-jaw expandable ground anchor engineered for securing utility poles and overhead line hardware to the ground when paired with anchor rods. Made from high-strength, corrosion-resistant metal (likely galvanized steel or durable plastic composite), it’s available in six models with wire counts from 6 to 8, wire spacing ranging from 5/8" to 3/4", lengths of 92mm/135mm/145mm, and weights per 100pcs from 310 to 455 units. Each carton contains 5 pieces as standard, designed to expand in soil for maximum grip and tensile load resistance in power and telecommunication infrastructure.

Description
Advantage
Application
Accessories

This Anchor Expanding 8 Way assembles with anchor rods to firm utility poles in soil, available in 6–8 wire models for diverse load and soil conditions.

8-way expandable design: Expands radially in soil to create a strong, stable anchor point with high pull-out resistance.

Model versatility: 6 wire/5/8" spacing to 8 wire/3/4" spacing options fit different soil types and load requirements.

Easy installation: Assembles quickly with anchor rods and deploys by expanding in soil, no heavy excavation needed.

Corrosion resistance: Durable material construction withstands soil moisture and chemical corrosion for long-term use.

Standardized packaging: 5 pieces per carton simplifies storage, shipping, and on-site inventory management.

Utility pole anchoring: Secures wooden/metal/concrete utility poles in power distribution and telecommunication lines, especially in loose or sandy soil.

Guy wire systems: Works with anchor rods to provide ground anchorage for guy wire assemblies in high-wind regions.

Residential/light commercial power: Anchors small utility poles for neighborhood power supply and street lighting systems.

Anchor rods: Paired with the expanding anchor to connect to utility pole guy wire systems (matching wire spacing specs).

Hex nuts & lock washers: Fasten the anchor rod to the expanding anchor and prevent loosening under tension.

Installation tool (rod driver): For pushing the anchor into soil and triggering expansion (optional).

Anti-corrosion grease: Lubricates threaded connections between the anchor and rod for easy installation and rust prevention.

Guy wire clamps/thimbles: For linking guy wires to the upper end of the anchor rod.
